Quick specs for Goldens' Mills

click on image for larger view

Standard three roller horse power cane mills.

No. 1..1 Horse Light........weight 375 lbs.......35 gallons juice per hour
No. 2..1 Horse Heavy......weight 570 lbs.......45 gallons juice per hour
No. 3..2 Horse Light.........weight 770 lbs.......65 gallons juice per hour
No. 4..2 Horse Heavy..... weight 1,100 lbs....100 gallons juice per hour

Three roller horse power X cane mills.
No. 1X..1 Horse Medium.....weight 450 lbs.......52 gallons juice per hour
No. 2X..1 Horse Heavy........weight 680 lbs.......67 gallons juice per hour
No. 3X..2 Horse Medium......weight 930 lbs.......97 gallons juice per hour
No. 4X..2 Horse Heavy.........weight 1,300 lbs....150 gallons juice per hour

Three roller horse power XX cane mills.
No. 2XX..1 Horse Heavy.......weight 730 lbs.......67 gallons juice per hour
No. 3XX..2 Horse Medium.....weight 990 lbs.......97 gallons juice per hour
No. 4XX..2 Horse Heavy.......weight 1,395 lbs....150 gallons juice per hour

Standard two roller horse power cane mills.
No. 12..1 Horse Heavy......weight 605 lbs.......45 gallons juice per hour
No. 14..2 Horse Light.....weight 835 lbs..........70 gallons juice per hour
No. 16..2 Horse Heavy......weight 1,160 lbs....100 gallons juice per hour

Two roller horse power X cane mills.
No. 12X..1 Horse Heavy......weight 730 lbs.........67 gallons juice per hour
No. 14X..2 Horse Light......weight 1,010 lbs.......105 gallons juice per hour
No. 16X..2 Horse Heavy......weight 1,395 lbs......150 gallons juice per hour

Two roller horse power XX cane mills.
No.18XX..4 Horse Light.....weight 2,200 lbs....125 - 175 gallons juice/hour
No. 20XX..4 Horse Medium....weight 2,930 lbs...150 - 200 gallons juice/hour

Three roller horizontal horse power cane mills.
No. 8..2 Horse Extra Heavy.....weight 1,350 lbs....125 gallons juice per hour
No. 9..2 Horse Extra Heavy.....weight 2,370 lbs....175 gallons juice per hour

Horizontal Steam Power Three Roller Cane Mills

No. 27..4 - 6 HP required.....weight 1,650 lbs....125 - 175 gallons juice/hour
No. 36..6 - 8 HP required.....weight 2,750 lbs....175 - 225 gallons juice/hour
No. 45..8 - 12 HP required....weight 4,700 lbs....225 - 325 gallons juice/hour
No. 54..15 - 20 HP required...weight 7,900 lbs....400 - 550 gallons juice/hour
No. 63..25 - 30 HP required...weight 13,000 lbs...550 - 650 gallons juice/hour

No. 63 with Bagasse Carrier

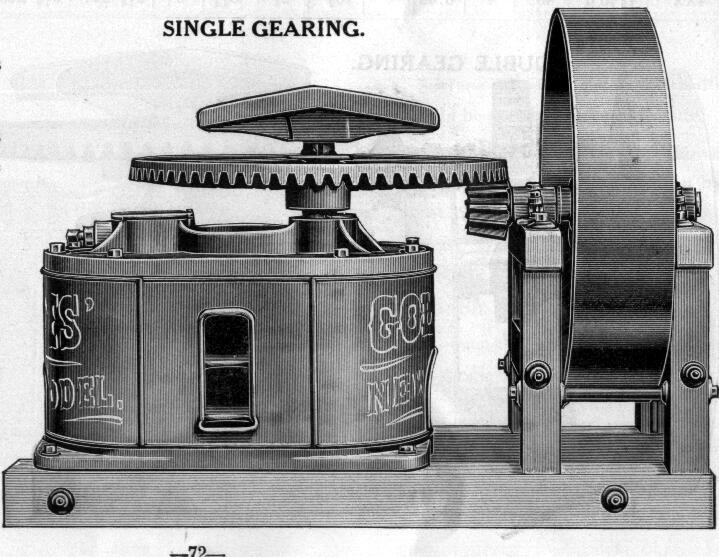

Combination Mill Adapting No. 2, No. 3 and No. 4 to Steam Power
(Single gearing)
No. 2......2 1/2 to 3 1/2 HP required.....weight 950 lbs
No. 3......3 1/2 to 4 1/2 HP required.....weight 1,349 lbs
No. 4......4 1/2 to 6 HP required.........weight 1,834 lbs

Combination Mill Adapting No. 2, No. 3 and No. 4 to Steam Power
(Double gearing)
No. 2......2 1/2 to 3 1/2 HP required.....weight 1,040 lbs
No. 3......3 1/2 to 4 1/2 HP required.....weight 1,464 lbs
No. 4......4 1/2 to 6 HP required............weight 1,970 lbs

Combination Mill Adapting No. 2XX, No. 3XX and No. 4XX to Steam Power
(Single gearing)

No. 2......2 1/2 to 3 1/2 HP required.....weight 1,139 lbs
No. 3......3 1/2 to 4 1/2 HP required.....weight 1,552 lbs
No. 4......4 1/2 to 6 HP required...........weight 2,106 lbs

Combination Mill Adapting No. 2XX, No. 3XX and No. 4XX to Steam Power
(Double gearing)
No. 2......2 1/2 to 3 1/2 HP required.....weight 1,227 lbs
No. 3......3 1/2 to 4 1/2 HP required.....weight 1,657 lbs
No. 4......4 1/2 to 6 HP required...........weight 2,292 lbs

Combination Mill Adapting No. 18XX and No. 20XX to Steam Power
(Single gearing)
No. 18XX....6 to 8 HP required.....weight 3,130 lbs
No. 20XX....8 to 10 HP required.....weight 4,247 lbs

Combination Mill Adapting No. 18XX and No. 20XX to Steam Power
(Double gearing)
No. 18XX....6 to 8 HP required.....weight 3,318 lbs
No. 20XX....8 to 10 HP required.....weight 4,475 lbs

General Dimensions and Weights of Gearing for Cane Mills

12" roll 30" large bevel gear 30" belt pulley weight w/o roll 298 lbs
14" roll 36" large bevel gear 36" belt pulley weight w/o roll 436 lbs
16" roll 40" large bevel gear 40" belt pulley weight w/o roll 589 lbs
18" roll 42" large bevel gear 44" belt pulley weight w/o roll 784 lbs
20" roll 44" large bevel gear 48" belt pulley weight w/o roll 969 lbs

General Dimensions and Weights of Double Gearing for Cane Mills

12" roll 30" large bevel gear 30" belt pulley weight w/o roll 376 lbs
14" roll 36" large bevel gear 36" belt pulley weight w/o roll 549 lbs
16" roll 40" large bevel gear 40" belt pulley weight w/o roll 725 lbs
18" roll 42" large bevel gear 44" belt pulley weight w/o roll 900 lbs
20" roll 44" large bevel gear 48" belt pulley weight w/o roll 1,193 lbs

Cane Mill Colors

When queried about the color of the Goldens' cane mills, Dennis Parker replied:

"There is no known color code.    Mr. Theo Golden, now deceased, answered this question many times as "rust red".   He described it as NOT being a bright red, but somewhere between "brick red" and "barn red".             This was also confirmed by Mr. J. T. Boyd Sr., long time president and CEO, now also deceased."

03/20/03
